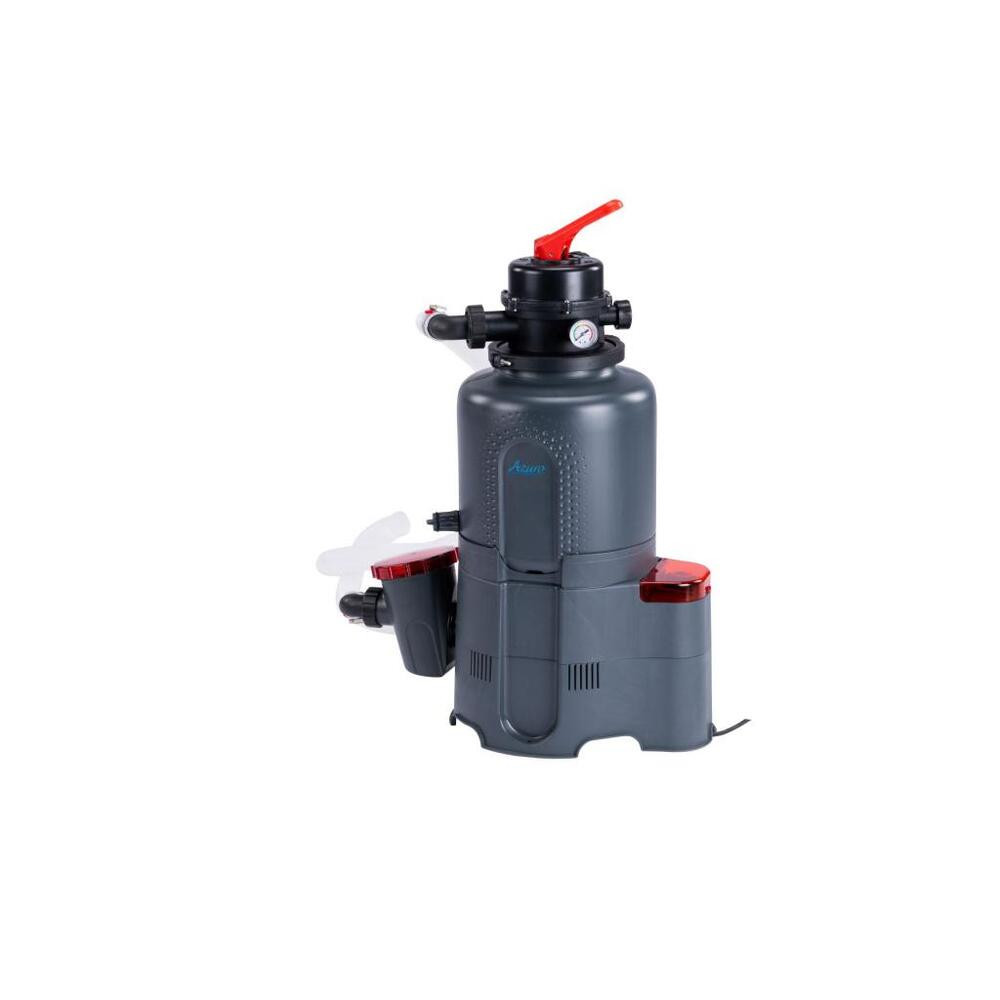

AZURO 6M sand filter water circulation timer, 5.5 m3/h, for pools with a capacity of 21-30 m3 (max 7.3 x 3.7 x 1.2m)

The AZURO 6M is a 2020-designed, innovatively designed, compact sand filter water circulation device for medium and larger Azuro pools. Regular use, supplemented by optimal chemical treatment, provides crystal-clear, evenly pleasant water throughout the bathing season. Not only is its modern appearance new: the device is completely developed and manufactured in Europe, with a continuous supply of spare parts and a service base. Under its elegantly designed casing, it contains the sand tank and water circulation pump built into a machine housing. Its six-way main valve includes all water circulation, backwashing, emptying and winterization/shutdown functions. It also has a pressure gauge and timer for optimal operation. Its main switch with touch protection can be easily and safely put into operation and out of operation. Its transparent pre-filter connection element provides insight into the degree of contamination. ; Technical data:; Production code: Mountfield 3EXB0438 / 3BTE0515; Swing Plus 18; Mains connection: 230 V/ 50 Hz; cable length: 2.5 meters; Power consumption: 250W; Protection class: IP X5; Water circulation capacity: 5.5 m3/h (5,500 liters/hour); Recommended pool capacity: 21-30 m3, max. 30,000 liters; Recommended pool type: medium and larger Azuro, 460 x 110/120cm, 500/550/640 x 120cm, 5.5 x 3.7 x 1.2m, max. 7.3 x 3.7 x 1.2m; Lifting height: 1.5 m; Not self-filling. For optimal suction/circulation, it is recommended to place it flush with the pool base; if the pool is above ground, on the ground; if the pool is sunken, then the filter is sunk accordingly, in a pit.; Filter diameter: 143 mm; Useful filter media surface: 0.036 m2; Turbidity reduction efficiency: (TBR) 56%; Operating pressure: 0.5 bar; Maximum working pressure: 1.0 bar; Maximum water temperature: 35°C; Control valve design: top, 6-way; Pressure gauge: yes; Timer: yes; Required sand capacity for one fill: 18 kg quartz sand, 0.6 – 1.2 mm grain size; Connection: conventional 38 mm pool hose stub; The package contains 2 3-meter hoses with fixing clamps; Dimensions: 40 x 80 x 33 cm; Weight: 11.5 kg; Manufacturer's warranty: 2 years
