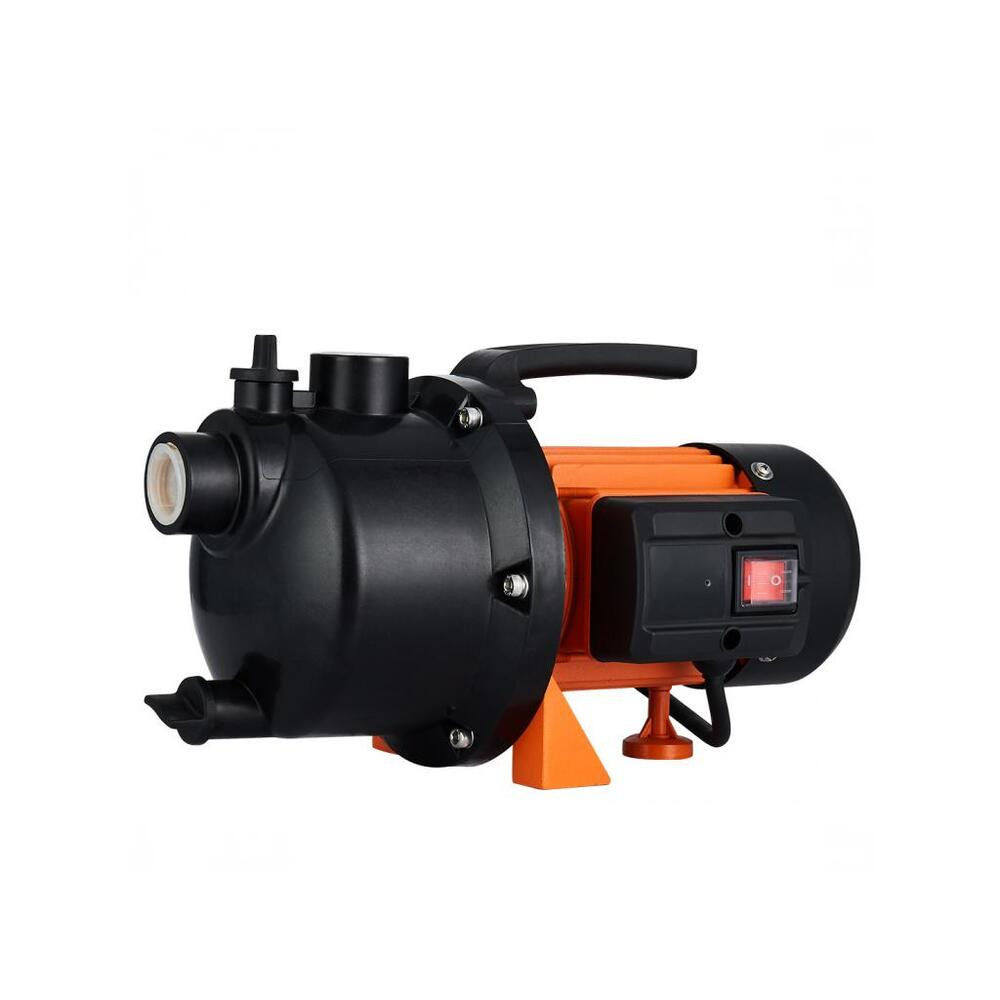

Acquaer EKJ-802I Garden jet pump with cast iron housing

The EKJ-802I is a self-priming garden jet pump with an 800W motor and a cast iron housing, offering a reliable solution for delivering clean water from drilled or ring wells, rainwater collection barrels or ponds. Its main application is for sprinkler or flood irrigation of green areas and gardens, draining garden ponds or pools, but it is also suitable for providing water supply to a household. The pump is robust and easy to transport thanks to its carrying handle and light weight. The motor is equipped with overload protection and a 1.5m power cable. It is easy to put into operation, and the ON/OFF switch is protected against splashing water. The stable sealing of the device is ensured by a ceramic-inserted axial sliding ring. seal. The mechanical seal requires a constant; ; water supply to function, therefore dry running of the system must be avoided. For dry running protection; ; we recommend using our electromagnetic switch PS01-A or PS01-B.; ; ; ; There is a G1” (30.3mm) internal threaded connection; ; on the suction and discharge sides of the pump. In order to achieve the highest possible water delivery, we recommend using a 1” (25mm) diameter suction pipe with a check valve on the suction; ; side; (available in our range of accessories), using a 3” (19mm) internal; ; diameter sprinkler pipe on the pressure side.; ; ; ; One of the main advantages of the jet pump is its self-priming ability, so it is enough to fill the system when starting up; ; and if the suction side is properly closed, then refilling will only be necessary rarely; ; to maintain a continuous water column.; ; ; ; Another advantage of the jet system pump is that it can suck water; ; from a relative depth of up to 7m (from a well, a lake) and transmit it at a relatively; ; high pressure of 3.5..4.8bar, depending on the engine power. (This; ; pressure corresponds to a delivery height of 35…48m, and depending on the conditions; ; it can be suitable for operating about three sprinkler heads.)
