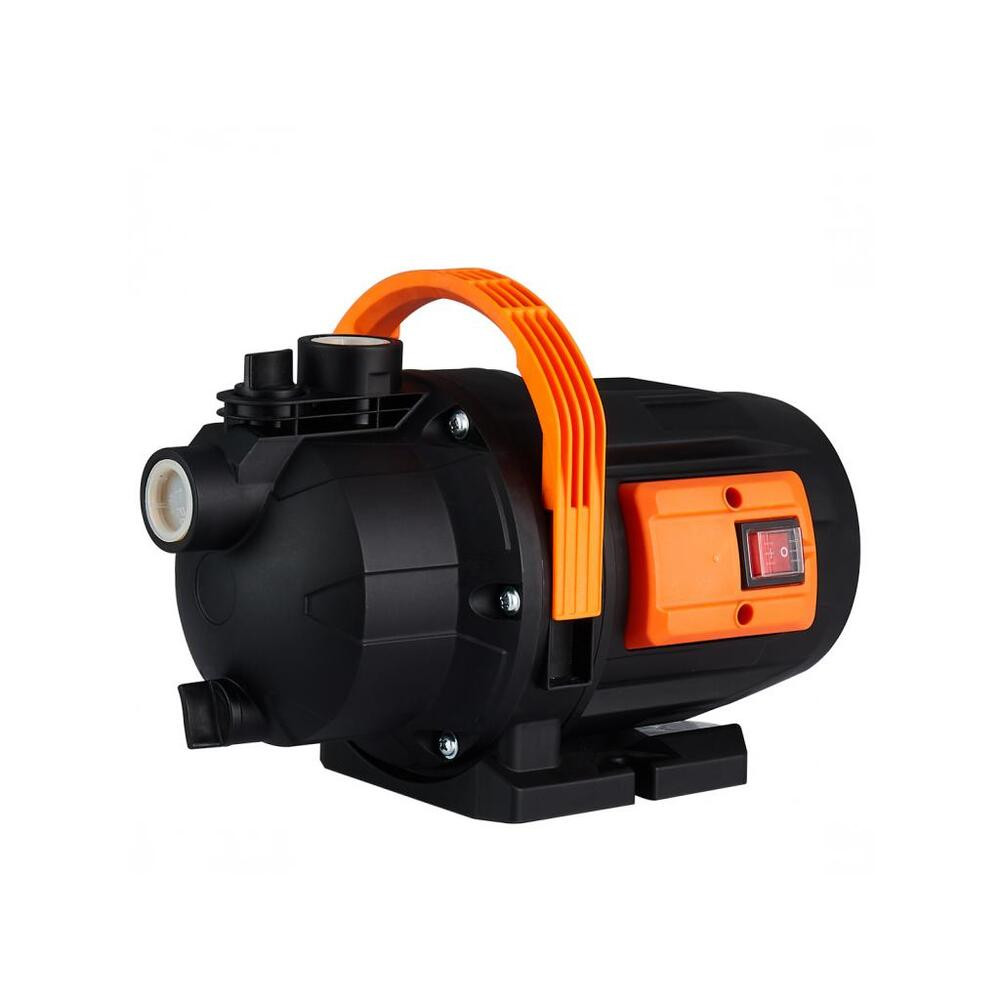

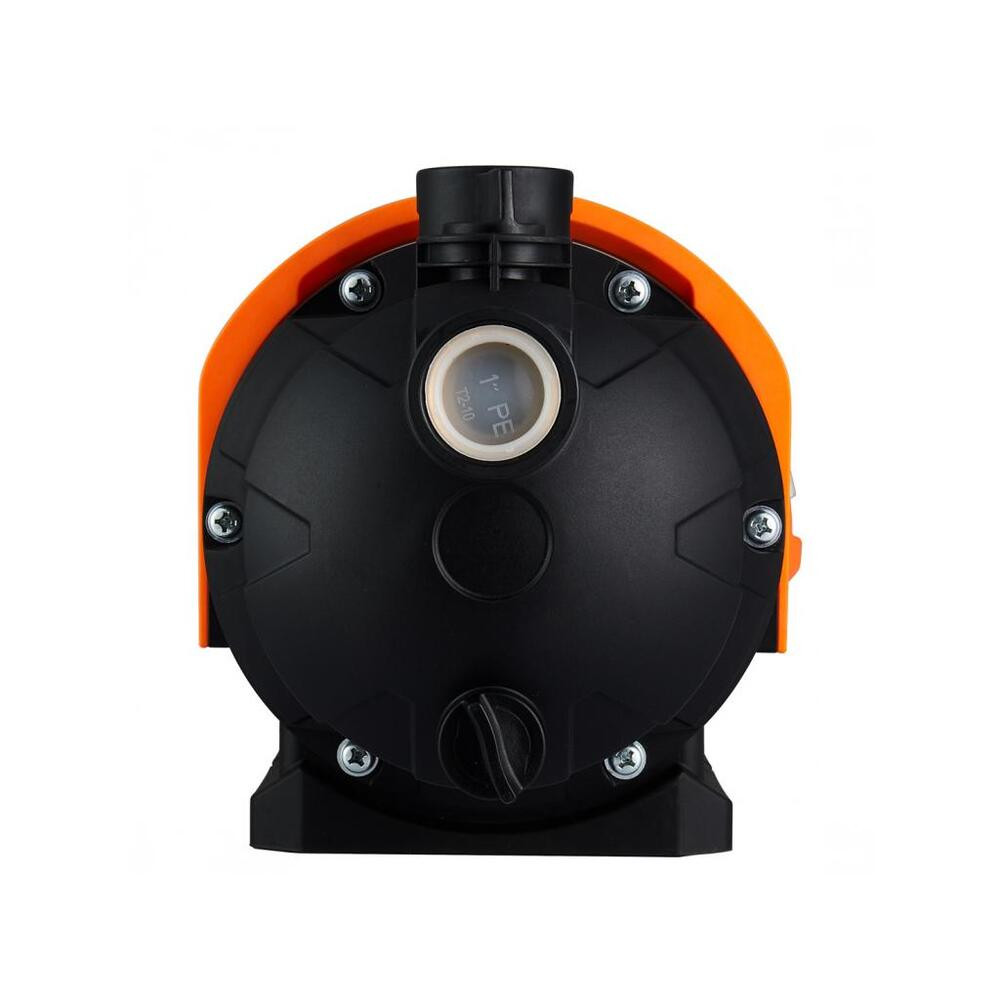

Acquaer EKJ-603P Garden jet pump with plastic housing

The EKJ-603P is a self-priming garden jet pump equipped with a 600W motor,; ; which offers a reliable solution for transporting clean water from drilled or ring; ; wells, rainwater collection barrels or ponds. Its special feature is that its housing is made of technical; ; plastic, with a compact structure, which provides a unique design and splash; ; protection for the pump. Their main areas of use are sprinkler or flood irrigation of green areas; ; and gardens, draining garden ponds or pools; ; but it is also suitable for providing water supply to a household.; ; ; ; The pump has a robust structure and is easy to transport thanks to its; ; carrying handle and light weight. The motor is equipped with overload protection,; ; and a 1.5m power cable. It is easy to put into operation, the ON/OFF; ; switching is assisted by a splash-proof switch.; ; ; ; The stable tightness of the equipment is ensured by an axial mechanical seal with a ceramic insert. The mechanical seal requires a constant water supply; ; therefore, the system must not run dry. For protection against dry running; ; we recommend using our electromagnetic switch PS01-A or PS01-B.; ; ; ; There is a G1” (30.3mm) internal threaded connection; ; on the suction and discharge sides of the pump. In order to achieve the highest possible water delivery, we recommend using a 1” (25mm) diameter suction pipe with a check valve on the suction; ; side; (available in our accessories range), using a 3” (19mm) internal; ; diameter sprinkler pipe on the pressure side.; ; ; ; One of the main advantages of the jet pump is its self-priming ability, so it is enough to fill the system when starting up; ; and if the suction side is properly closed, then refilling will only be necessary rarely; ; to maintain a continuous water column.; ; ; ; Another advantage of the jet system pump is that it can suck water; ; from a relative depth of up to 7m (from a well, a lake) and transmit it at a relatively; ; high pressure of 3.5..4.8bar, depending on the engine power. (This; ; pressure corresponds to a delivery height of 35…48m, and depending on the conditions; ; it can be suitable for operating about three sprinkler heads.)
