Elpumps sewage pump BT-6877 K Special

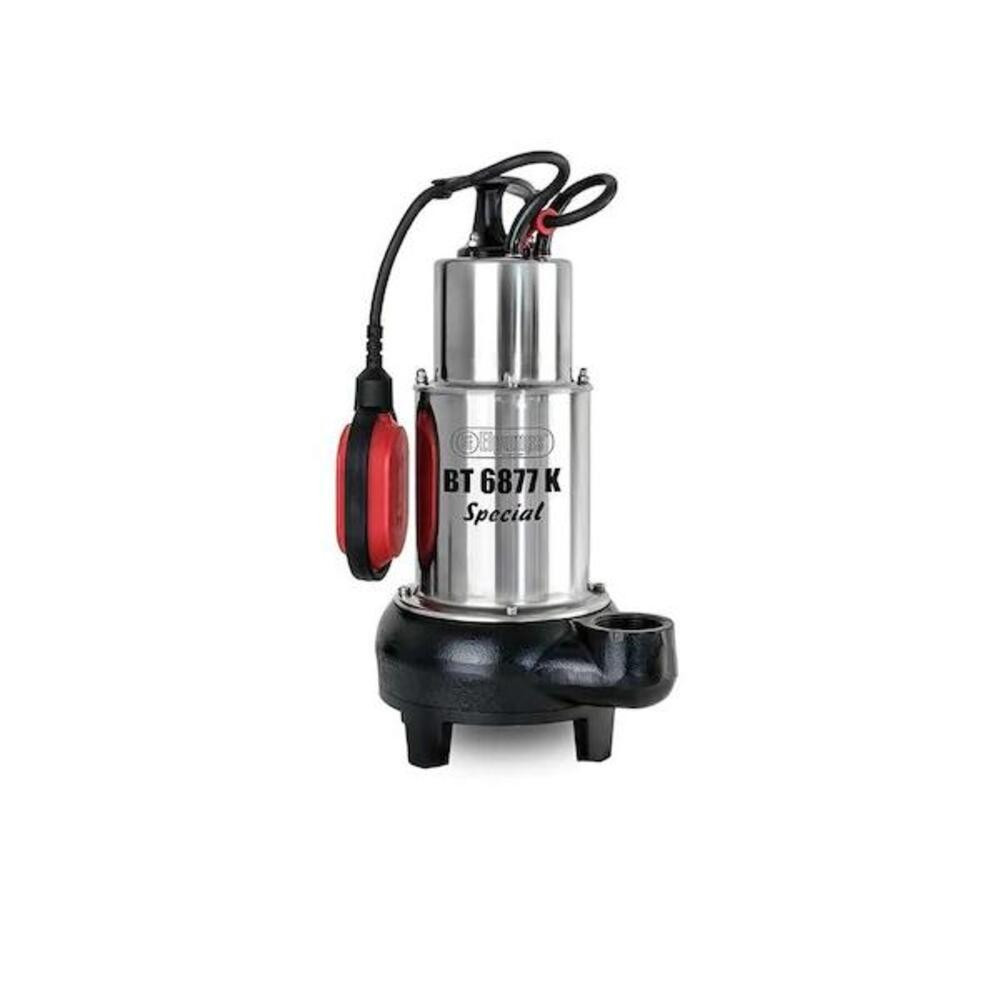

Elpumps BT 6877 K Special cutting knife, grinder sewage pump; Advantages of the Elpumps BT 6877 K Special cutting knife, grinder sewage pump:; 1600W strong, durable, economical motor; robust design; equipped with a float switch; relatively light weight, only 15 kg; Hungarian product; 2 year warranty; The Elpumps BT 6877 K Special grinder sewage pump is primarily used for pumping residential sewage, where the sewer level is higher than the sewage flowing out of the house, so there is no possibility of gravity outflow. The Elpumps BT 6877 K Special cutting knife pump is equipped with a 1600W motor. The impeller is vortex type, made of cast iron. The shaft and electric motor housing of the cutting sewage pump are made of high-quality chrome steel, which is resistant to aggressive sewage, and the motor cover cap is made of acid-resistant steel. The hydraulic housing of the pump is made of durable, strong cast iron. The high-quality raw materials used in production ensure the long service life of the pump. The shaft seal, which protects the motor compartment, is a modern ceramic-silicon axial seal with good wear resistance. The built-in float switch ensures automatic operation. The maximum vertical lift height of the Elpumps BT 6877 K Special cutting sewage pump is 18 meters, and the maximum delivery capacity is 32 m3/h. The pressure hose has a 6/4 inch internal thread, vertical design. The pump is supplied with a straight hose clamp to which a 25 mm or 32 mm internal diameter pressure hose can be attached with a clamp. Of course, in the case of fixed installation, it can also be installed with a 40 KPE pipe. The maximum submersible depth is 5 meters below water level. The Elpumps BT 6877 K Special grinder sewage pump can be connected to a pressurized sewer system thanks to its high lifting height, of course taking into account the terrain level. ; Important information when installing the Elpumps BT 6877 K Special cutting, cutting knife sewage pump.; The given parameters must be taken into account during installation. Lifting height vertically and horizontally, as well as the cross-section of the pressure pipe. In case the sewage flowing back from the discharge pipe, which has already been pushed out by the pump, reaches the restart level, a rubber ball sewage check valve must be installed vertically in the discharge pipe. In order to ensure the safe operation of the motor, the maximum number of starts per hour is 20. In order to ensure safe operation, especially if the pump is installed in a fixed installation and its work is not monitored, an adjustable amperage motor protection switch must be installed in the electrical network. This motor protection will protect the sewage pump in the event that the device is accidentally jammed by other foreign bodies, such as stones, pieces of wood, etc. If this error occurs, it would be good to know about it, right? An emergency level indicator float switch can be the solution, which is connected with a sound or light signal. The presence of a residual current device (RCD) is also a basic requirement for safe operation. You can get more information about this in our store.; The Elpumps BT 6877 K Special cutting knife sewage pump can be used for fecal water containing toilet paper. It is not suitable for pumping sanitary napkins, mops, bone fragments and other solid contaminants. If these sources of danger exist, we recommend a free-flow sewage pump. ; Technical data of the Elpumps BT 6877 K Special cutting knife sewage pump:; Voltage: 230V/50Hz; Power: 1600W; Maximum lift height: 18 meters; Maximum fluid delivery: 32000 liters/hour; Pump discharge port: 6/4 inch internal thread with vertical design (hose included); Cable: H05 RNF 3*1 mm2 length 10 meters, equipped with plug; Maximum liquid temperature: +35 degrees; Packing box size: 220*190*450 mm; Maximum submersible depth: 5 meters; Weight: 15 kg
