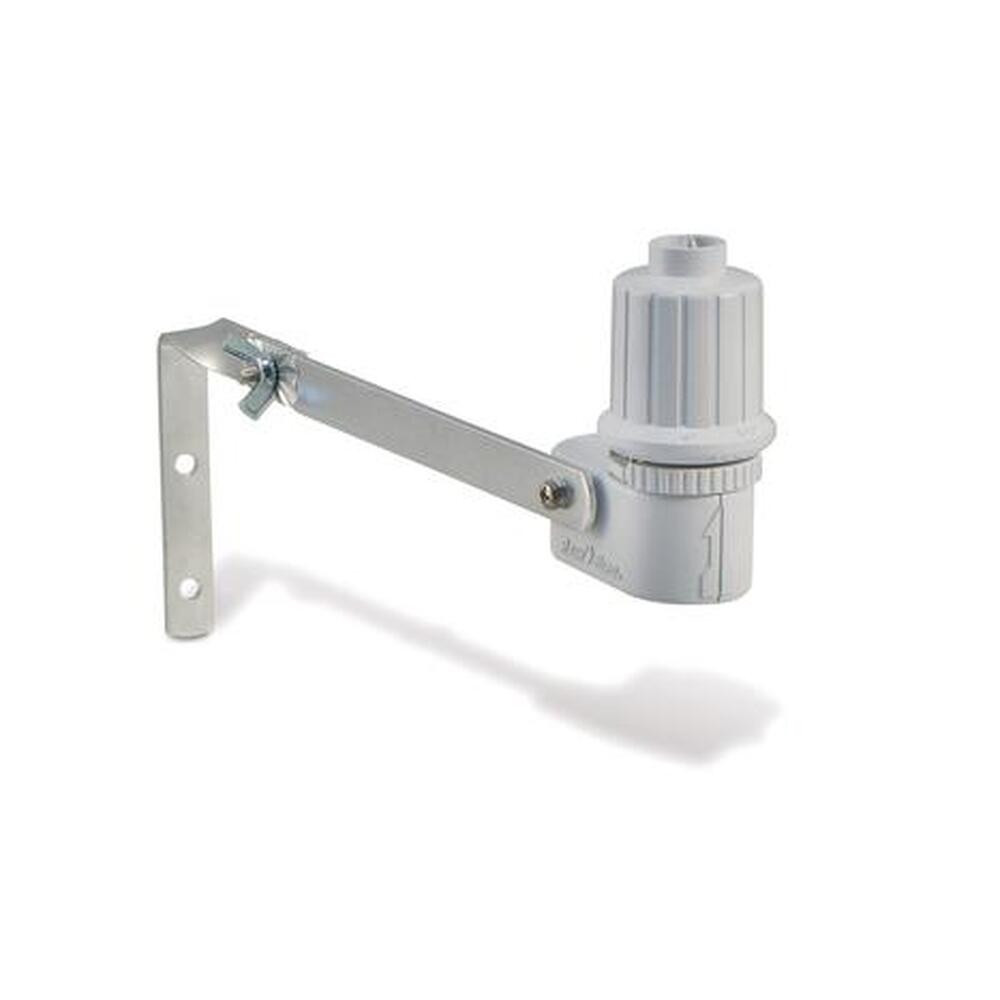

RSD-BEx Rain sensor, microswitch

Uses:; The RSD series rain sensor can be connected to 24 VAC irrigation systems for small gardens and public areas.; Saves water and increases the life of the system, as it automatically measures rainfall and stops irrigation during rainy weather.; Features:; • Works with any 24 VAC controller and TBOS™ timer equipped with a TBOS™ Rain sensor adapter; • Sensitivity adjustment between 3.2 and 20 mm of rainfall; • Adjustable ventilation ring to adjust the re-activation time; • UV-resistant plastic housing; • Strong aluminum bracket and arm, with a total extension of 15.2 cm; • 7.6 m UV-resistant cable for connection to the controller; Technical features:; Not recommended for high-voltage circuits; Switch electrical rating: 3 A @ 125/250 VAC; Power: 3 pcs 24 VAC, 7 VA solenoids per circuit plus 1 main shut-off solenoid; 7.6 m cable (2x0.5mm2) included; Dimensions:; Length: 16.5 cm; Height: 13.7 cm
