SOLENOID VALVE HV SERIES 1" bm connection, 24 VAC - 0.05-6.8 m3/h

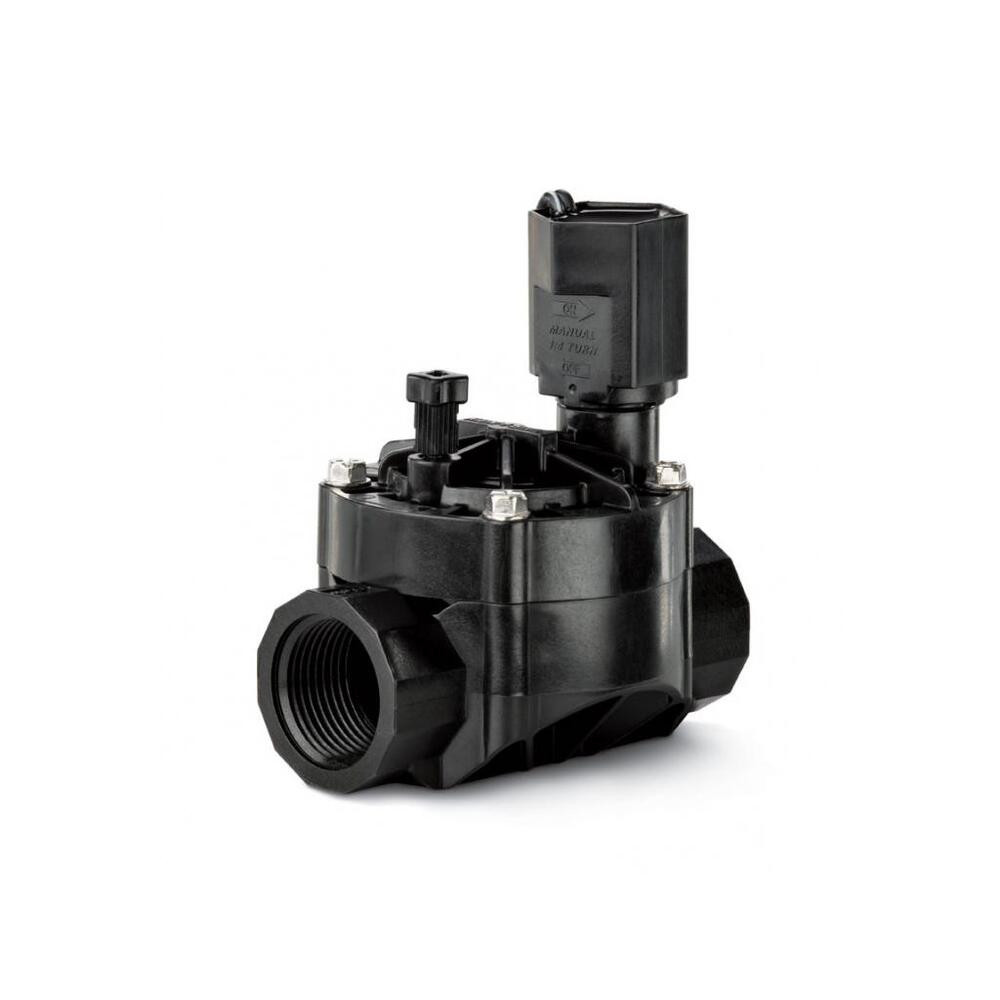

The Rain Bird HV-100 electric valve is typically used in home gardens and parks. The strong PVC housing on the outside and the durable rubber diaphragm result in a long service life. It is very easy to install, even from above, without dismantling. It has a 1" internal thread connection on both the inlet and outlet sides. Inside there is a rubber membrane that opens or closes the solenoid valve due to internal pressure changes. The solenoid valve is equipped with a 24 volt AC solenoid. The Rain Bird HV-100 irrigation valve requires at least 1 bar of pressure for proper operation. It can also be used with a 9 volt DC (tilt) solenoid.; DIMENSIONS; - height: 11.7 cm; - length: 11.2 cm; - width: 7.9 cm; TECHNICAL DATA; - water flow rate: 0.83-113.6 l/min; - pressure: 1.0-10.4 bar; - solenoid: 24 V~, 50 Hz; - inrush current: 300 mA; - holding current: 190 mA
