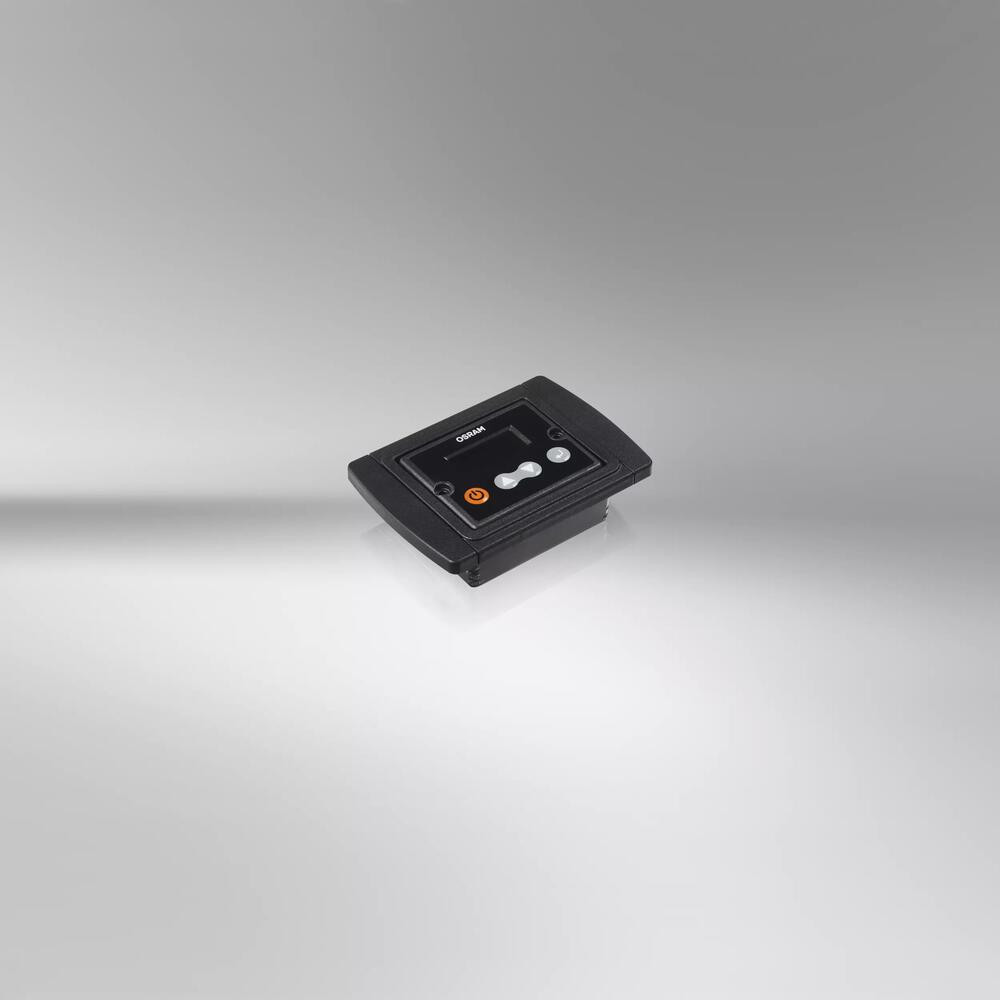

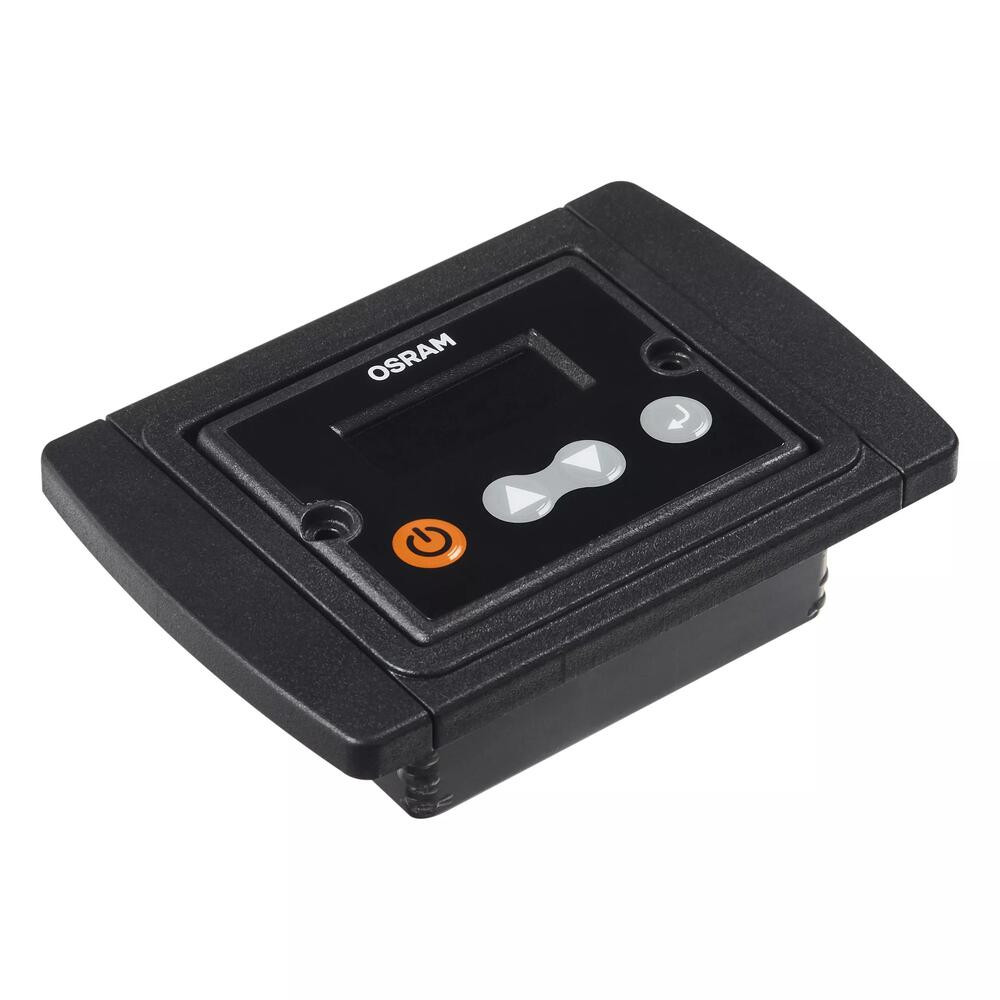

OSRAM LCD Remote Screen, OINVLCD Inverter accessory

OSRAM LCD Remote Screen OINVLCD: Accessories for inverter
OSRAM POWERinvert PRO is an extensive range of professional heavy duty inverters for remote working. Available in either Pure Sine Wave or Modified Sine Wave for both 12V and 24V applications.
OSRAM POWERinvert Pro inverters take the 12V or 24V DC vehicle electrical supply and invert into 230V AC mains power to run and operate electrical equipment from service vehicles.
Pure Sine Wave Inverters produce a sine wave with the same frequency as mains power, with no distortion, to power sensitive electronics.
Modified Inverters have distorted frequency, meaning they will power less complicated products such as fridges and power tools.
When an OSRAM POWERinvert PRO unit is installed in a vehicle it can often be fixed out of site. To help operators understand how an inverter is performing, the OSRAM POWERinvert PRO Multifunction LCD screen, will connect to the inverter and show readings that are more accessible for the end user. Compatible for both Modified and Pure Sine Wave POWERinvert PRO inverters. 6m cable allows for the screen to be positioned in the vehicle away from the inverter. Comes complete with fixings.
Areas of application: Inverter accessory
Legal advice, all: CE Approved
Safety advice, all: Tested and certified to the relevant EMC and LVD Directives.
• Compatible with both 12V and 24V Modified and Pure Sine Wave POWERinvert PRO inverters.
• Multifunction Readings
1. DC Voltage Input
2. AC Voltage Output
3. Continuous Wattage
4. Amp hour
• 6m of cable
• Complemented by the LCD frame (OINVFRM) for secure housing.
• Works with all OSRAM POWERinvert PRO inverters
• Full picture of how the inverter is performing and the state of health the vehicle’s battery
• So it can be mounted in an accessible area away from the inverter.
• Bracket provides additional protection to the screen and secure fixing.
