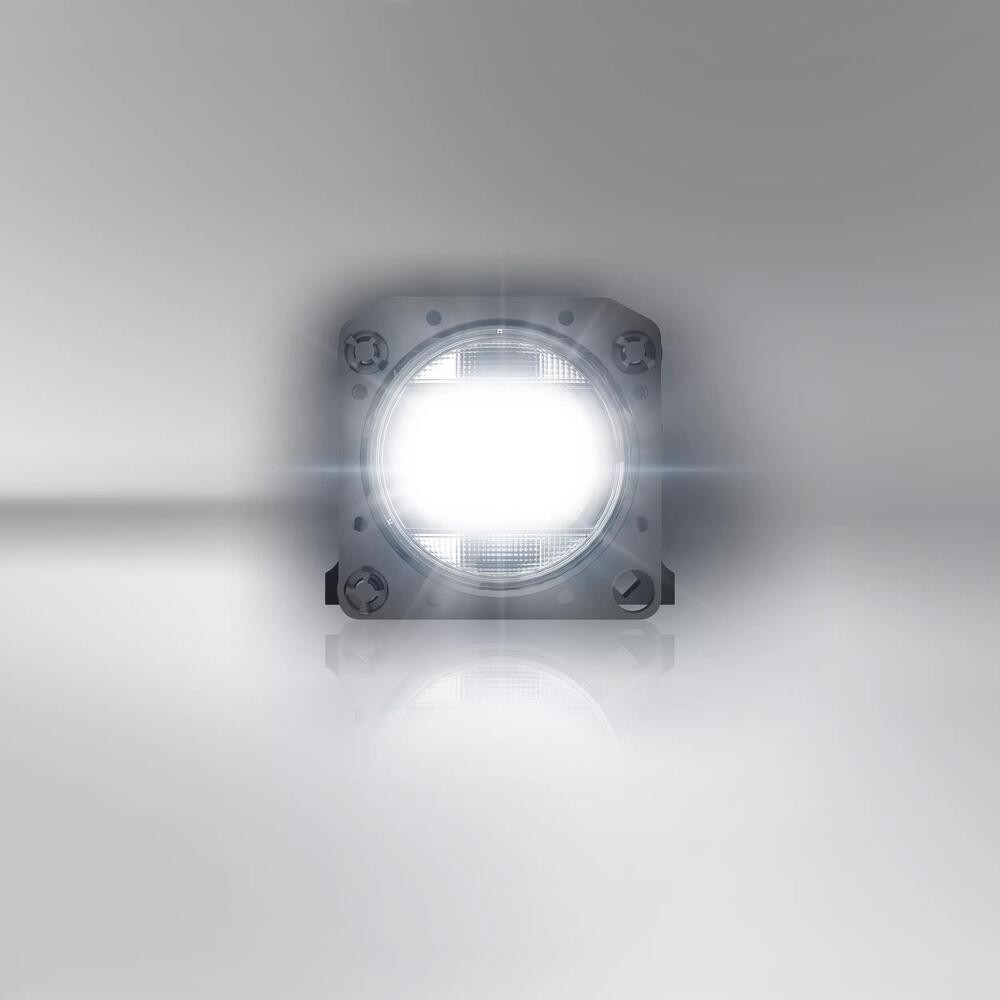

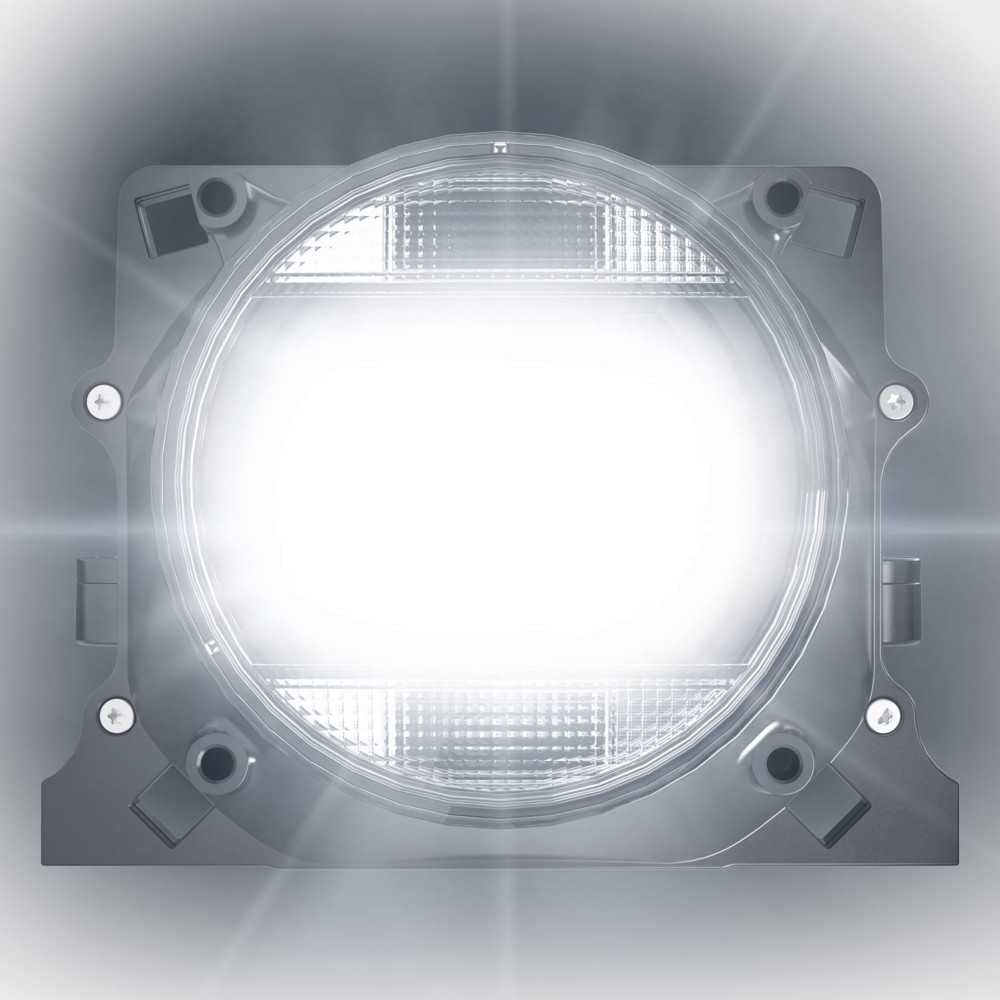

OSRAM LEDriving Universal Headlight, Headlights, 12/24 V, 5400-6500 K

OSRAM LEDriving Universal Headlight: Individual light for individual requirements
Experience maximum flexibility and a wide range of possible applications with the OSRAM LEDriving® Universal Headlights. The Bi-LED modules seamlessly integrate both low beam and high beam functionalities into a single headlamp module, providing you with the option for additional position light and daytime running light functions based on your requirements. They are available for left-hand drive (LEDUHL101/LEDUHL103) and right-hand drive (LEDUHL102/LEDUHL104). The four headlights in total offer superior illumination, performance, and quality. They are designed to deliver a brilliantly white light with exceptional clarity, ensuring enhanced visibility on the road. With their durable construction and sleek design, the headlights combine both style and functionality. The Universal Headlights are suitable for 12V and 24V vehicles and come in four different variants with a wide range of applications: the basic functions of low beam or high beam can be combined with other functions such as daytime running light and position light. Additionally, OSRAM has developed a specially designed mounting kit for easy, uncomplicated and flexible assembly. The LEDriving® Mounting Kit MK1 comes with a mounting plate, screws, clips and inserts and offers three mounting options: direct mount, mount with a mounting plate, and optional mount with a leveling motor. This allows for easy adaptation to different vehicle types. When it comes to external influences, the Universal Headlights are built to withstand extreme conditions. They are resistant to water, dust, shocks, vibrations, and a wide range of temperatures (validated according to the highest IP & IK protection classes IP6K7 & IP6K9K). Trust in quality and performance – OSRAM LEDriving® Universal Headlights are proudly made in Europe, meet the highest standards and have a 2-year OSRAM guarantee.

Areas of application: Headlights
Legal advice, all: For precise conditions refer to: www.osram.com/am-guarantee
Safety advice, all: For detailed application information, please refer to the product data sheet and the user instruction

- LED high and low beam projector with optional position light and daytime running light function
- Certification: ECE R10, R112, R87, R7
- For 12V and 24V vehicles
- Available for left-hand drive (LEDUHL101/LEDUHL103) and right-hand drive (LEDUHL102/LEDUHL104)

- Lumen Low Beam (LB): 781lm
- Lumen High Beam (HB): 1330lm

- Brilliantly white light with up to 6500K

- CISPR25 Class 3
- Highest protection classes according to IP6K7 & IP6K9K
- Operation temperature: -40°C - +85°C (integrated power cut for higher temperatures)

- Three mounting possibilities: Direct mount, with mounting plate and mounting plate with optional levelling motor

- Maximum flexibility and a wide range of possible applications

- Maximum of optical efficiency, effectiveness and homogeneous light distribution
- The Bi-LED modules combine low beam and high beam in a single headlamp module
- Position light and daytime running light function as option

- Exceptional illumination, performance, quality, shape, durability and functionality

- Resistance to extreme external influences concerning water, dust, shocks, vibrations and high temperatures

- High level of individualization

ECE category:
Color temperature: 5400-6500 K
Nominal voltage: 12/24 V
Nominal wattage: 28 W
