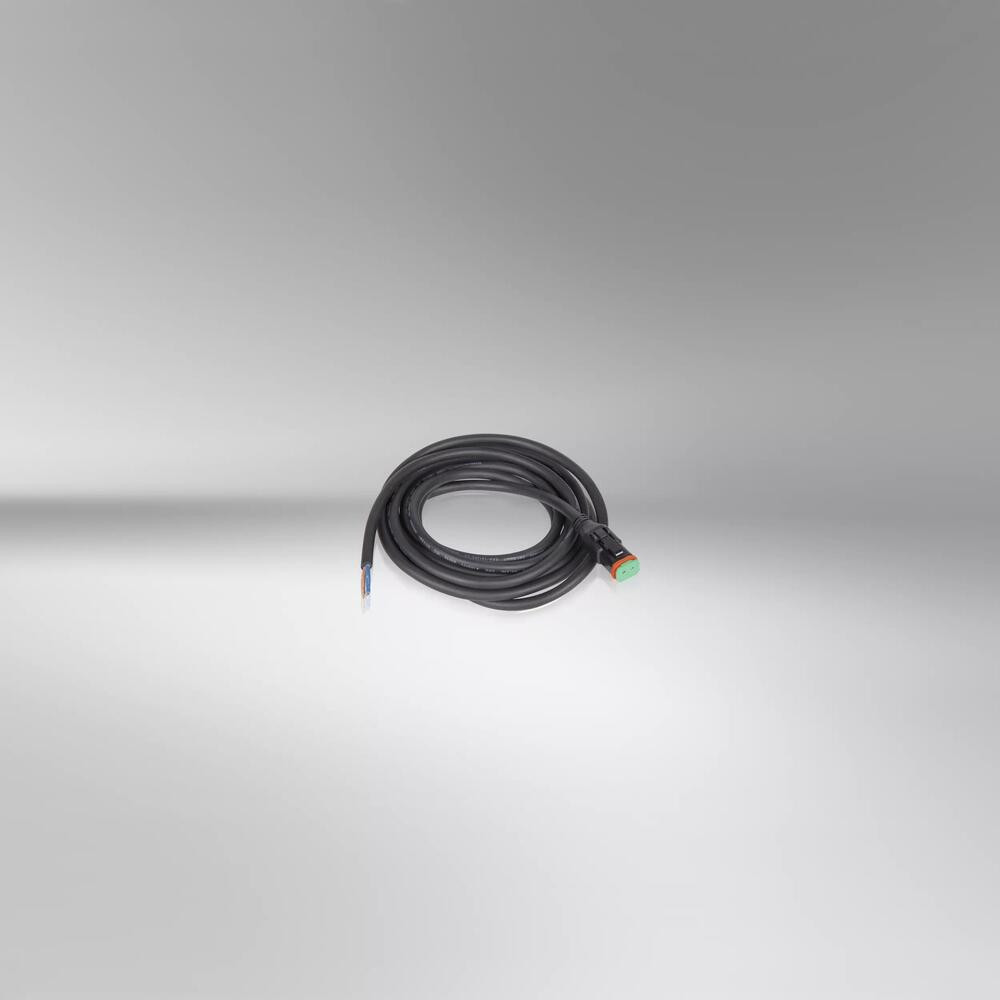

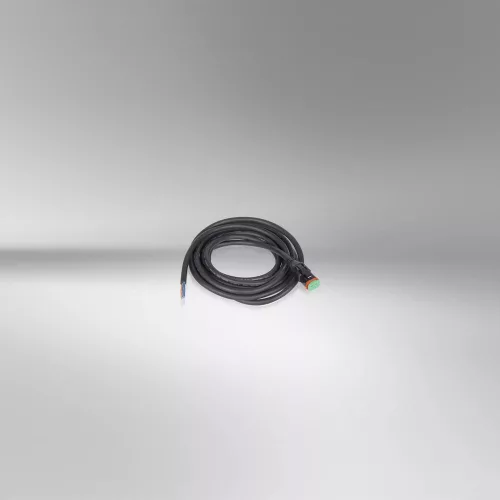

OSRAM Connection Cable 300 DT AX, Working & Driving Light Application, 12/24 V

OSRAM Connection Cable 300 DT AX: Professional light for professional work
With the OSRAM LEDriving Professional Series PX working lights portfolio, it is now possible to find exactly the right lighting for a wide range of special professional tasks and applications. Additionally, they can be mounted in three different ways: Direct mounting, flexible standard mounting, and heavy-duty mounting. OSRAM has developed specially designed mounting kits and a cable with DT-connector. The LEDriving Connection Cable 300 DT AX is compatible with all OSRAM LEDriving working lights of the Professional Series PX and with the LEDriving driving and working lights of the SX- and FX-series. It is suitable for 12V and 24V vehicles and with the DT connector it can provide a quick and easy connection to a power source for setup of the LEDriving driving and working lights. The conductor material is made of pure copper and with a length of 3m the cable is able to install appropriate lighting even on large vehicles. OSRAM provides a 2-year guarantee on this product

Areas of application: Working & Driving Light Application
Legal advice, all: Additional working lights without ECE approval for use as work lights are approved for use on any vehicle according to German Road Traffic Licensing Regulations (StVZO) §52 (7). However, they must not be used and switched on while driving. In addition, individual special regulations, and laws of countries outside Germany must be observed.
Safety advice, all: For detailed application information, please refer to the product data sheet and the user instruction
• Connection Cable 300 DT AX compatible with all OSRAM LEDriving working lights of the Professional Series PX and with the LEDriving driving and working lights of the SX- and FX-Series

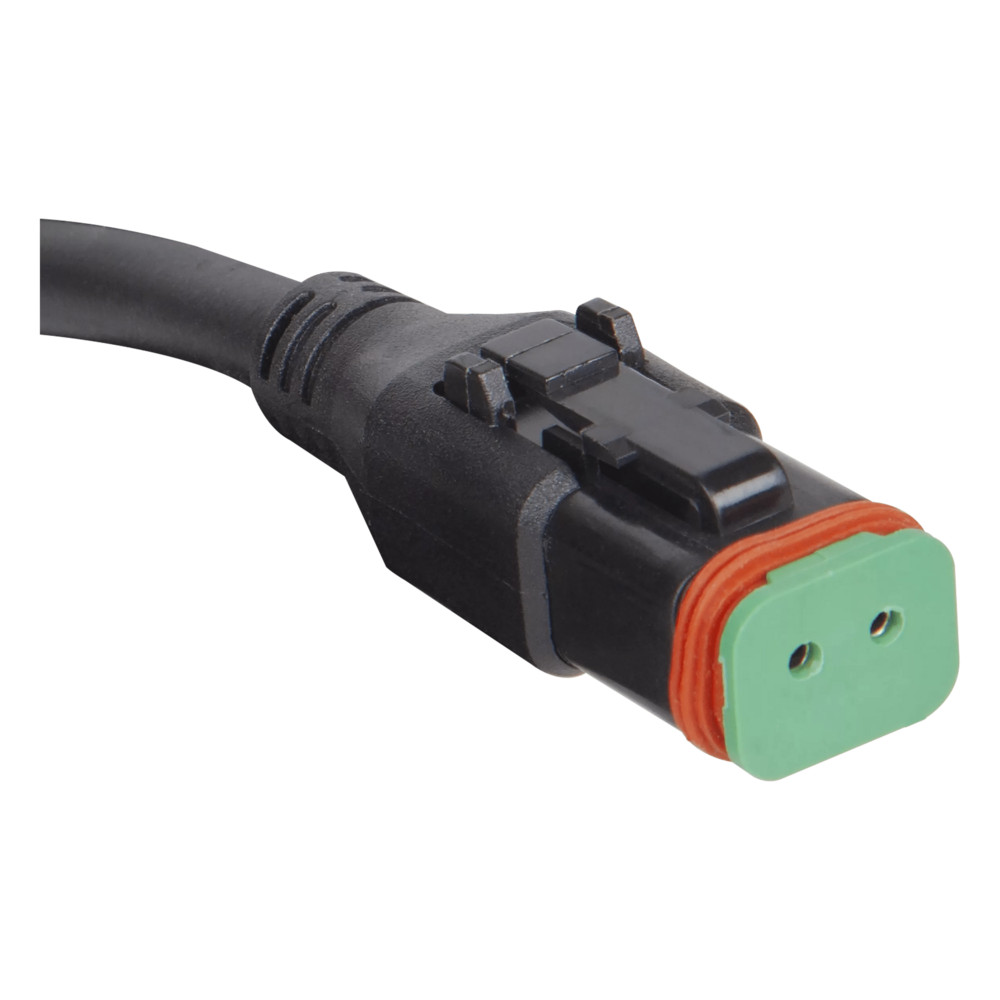

• Power supply and connection to the driving and working lights by means of DT06-2S-EP06 connector
• Conductor diameter 2* 1,4mm (2* 1,0mm²)
• Conductor material copper
• Jacket outer diameter 6,7 - 6,8 mm

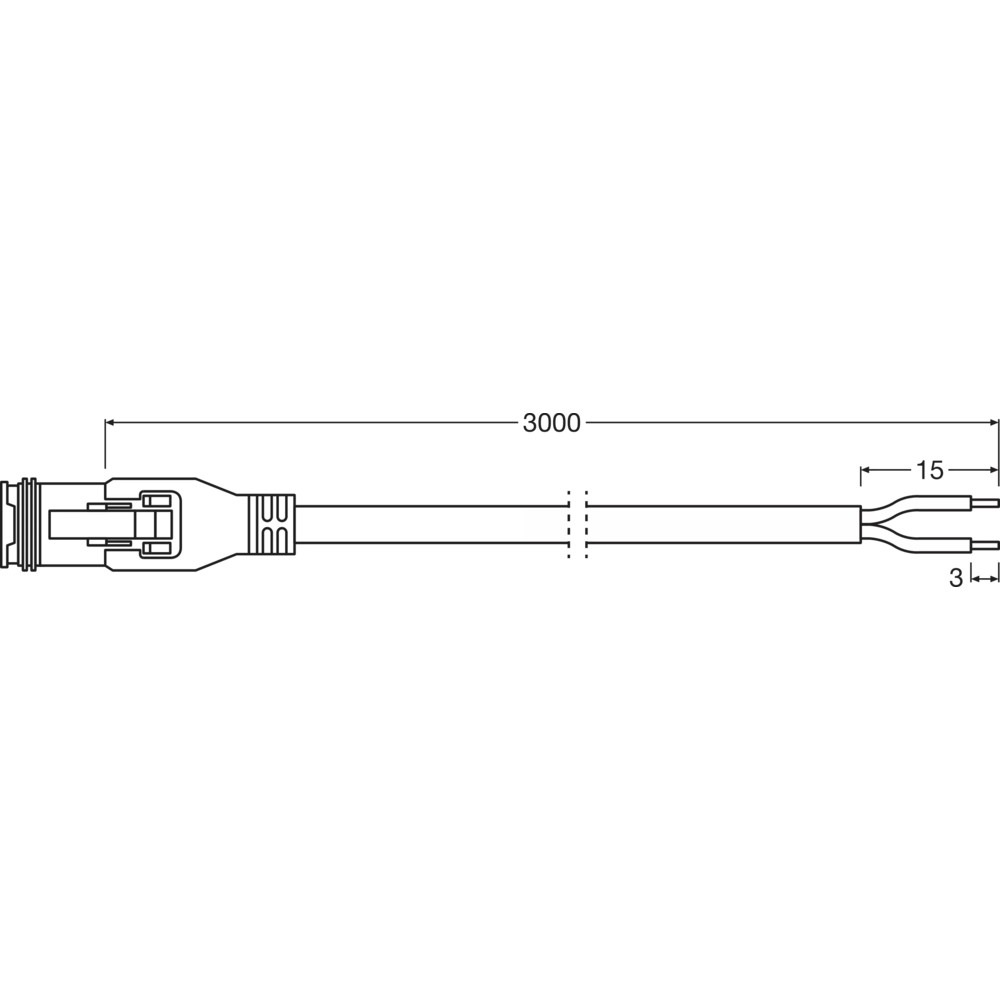

• Length: 3m
• Suitable for 12 V and 24 V vehicles
• Quick and easy connection to a power source for setup of the LEDriving driving and working lights of the PX-, SX- and FX Series possible
• Uncomplicated DT plug connection
• Pure copper has the property of having a particularly high electrical conductivity.
• With a length of 3m, the cable is made to install appropriate lighting even on large vehicles
• For a wide range of applications
• ECE category:
• Nominal voltage: 12/24 V
