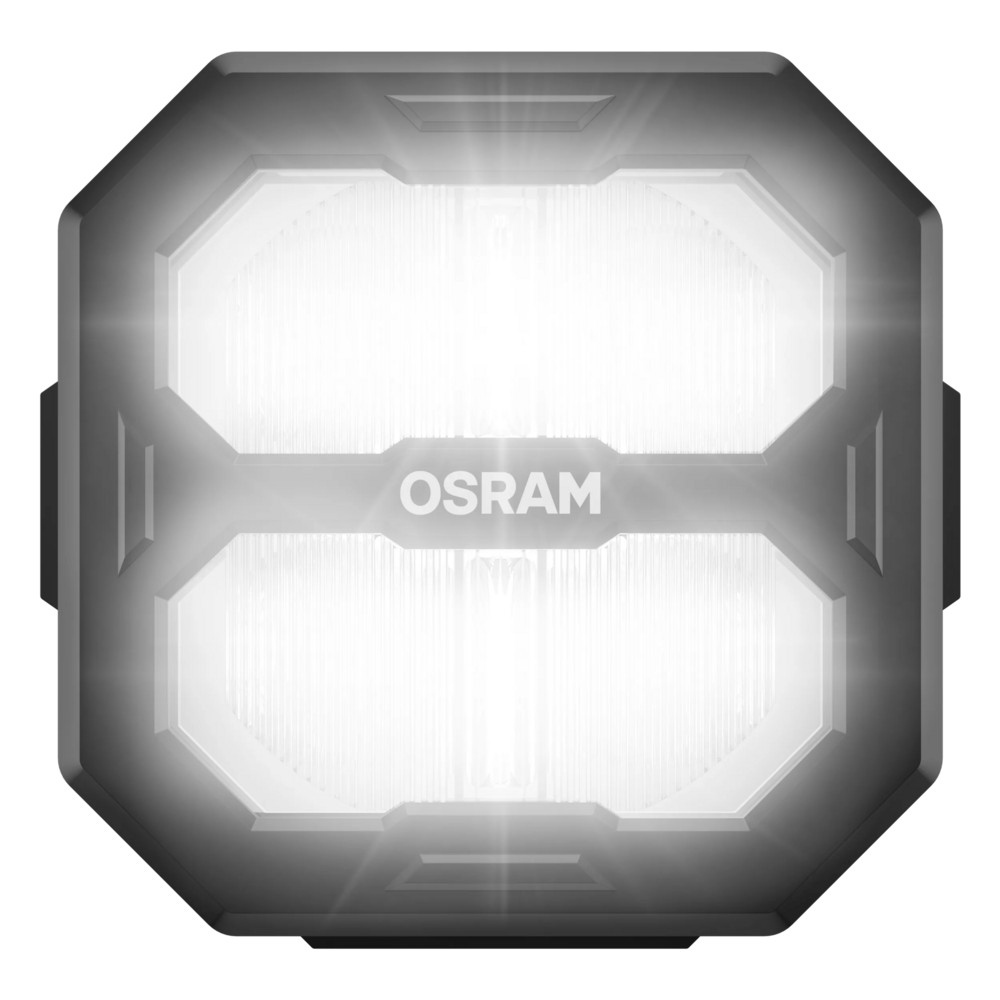

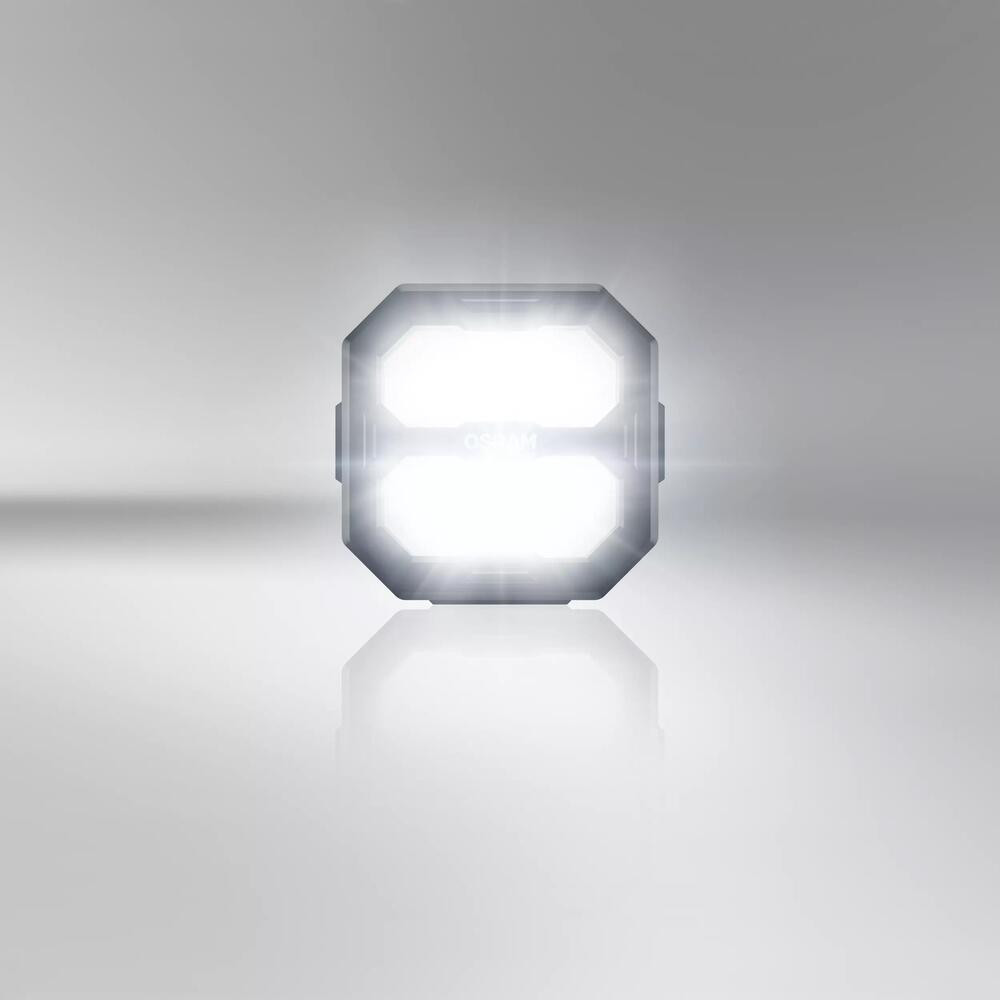

OSRAM Cube PX 3500 ULTRA WIDE, Working light application, 12/24 V, 6000 K

OSRAM Cube PX 3500 ULTRA WIDE : Professional light for professional work

With the OSRAM LEDriving® Professional Series PX working lights portfolio, it is now possible to find exactly the right lighting for a wide range of special professional tasks and applications. The 16 working lights in total score points with maximum optical efficiency, effectiveness, and homogeneous light distribution. The modular series focuses on the most important aspects of worklight use: Illumination, performance, quality, shape, durability, functionality, and thus can also result in increased safety at work for you and others. The optimal factors can be selected and prioritized for each corresponding application; thus, with these high-performance lights, a complete vehicle-specific lighting set-up can be put together, that this is perfectly applicable to the respective individual requirements and needs.
The working lights are suitable for 12V and 24V vehicles and a total of four beam patterns - Flood, Spot, Wide and Ultra-Wide - and four power levels - 1500lm, 2500lm, 3500lm and 4500lm - are available for each light. In addition, they can be mounted in three different ways: Direct mounting, flexible standard mounting, and heavy-duty mounting. Additionally, OSRAM has developed specially designed mounting kits and a cable with DT-connector. Validated according to the highest IP & IK protection classes IP6K8 & IP6K9K and CISPR25 Class 5, the Professional Series is designed to meet the highest OE standards and requirements of the automotive industry. OSRAM provides a 5-year guarantee on these products

Areas of application: Working light application
Legal advice, all: Additional working lights without ECE approval for use as work lights are approved for use on any vehicle according to German Road Traffic Licensing Regulations (StVZO) §52 (7). However, they must not be used and switched on while driving. In addition, individual special regulations, and laws of countries outside Germany must be observed.
Safety advice, all: For detailed application information, please refer to the product data sheet and the user instruction
- Ultra-Wide Beam Pattern
- 6000K
- For 12V & 24V vehicles
- 4 Power Levels
- 1500lm, 2500lm, 3500lm, 4500lm
- Aluminum die-cast housing
- Shatterproof polycarbonate lens
- CISPR25 Class 5
- Overheat & polarity protection
- Highest protection classes according to IP6K8 & IP6K9K
- Efficient reflector lens design with powerful OSRAM LEDs
- Three mounting options possible: Standard/Flexible, heavy duty and direct mounting
- Beam pattern for a large-area and wide light distribution
- Brilliantly white light colour
- For multi-variant use
- Applicable to the respective individual requirements and needs
- Developed to meet the highest OE standards and requirements of the automotive industry
- Class 5 is the most stringent requirement of automotive EMI testing
- Robust and resistant and specially developed for tough everyday working conditions
- Applicable to the respective individual requirements and needs
ECE category: Color temperature: 6000 K, Nominal voltage: 12/24 V
Nominal wattage: 33 W
