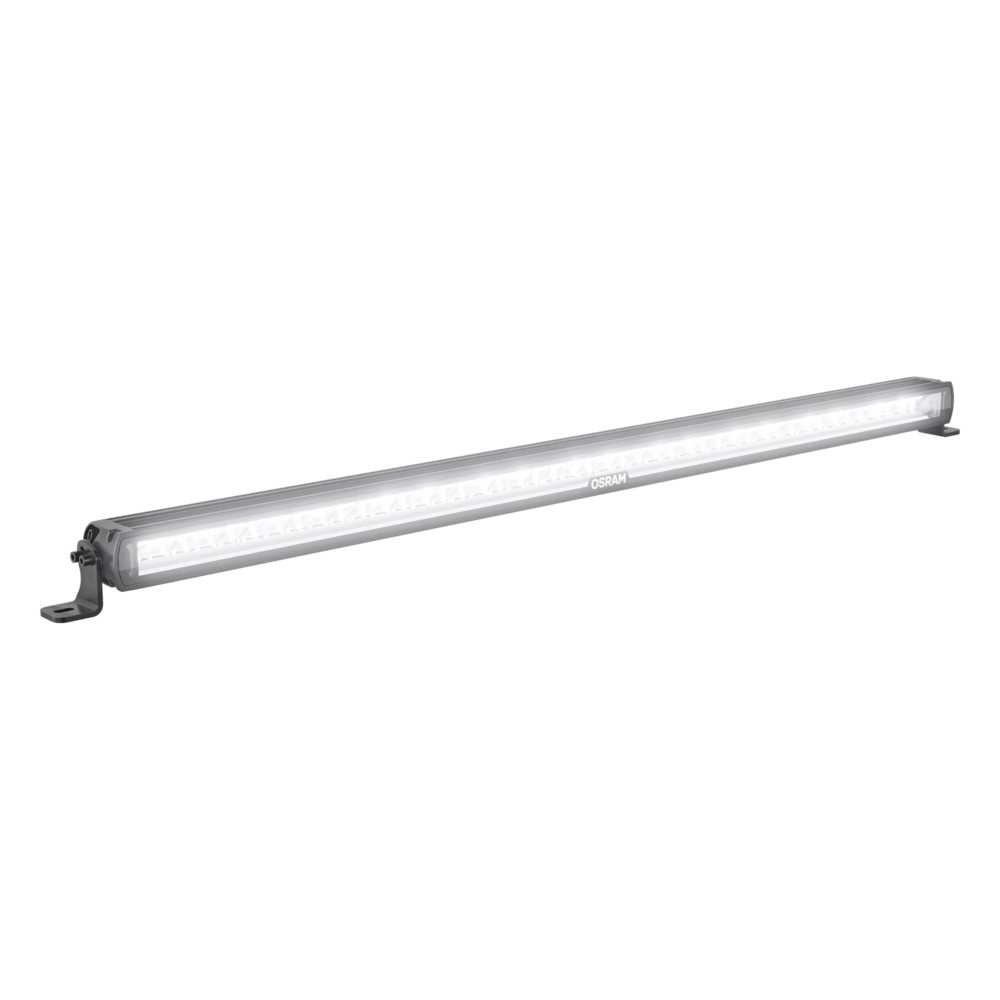

OSRAM Lightbar FX1250-CB SM GEN 2, Driving Light - Additional high beam application - central single mount, 6000 K

OSRAM Lightbar FX1250-CB SM GEN 2: Increased brightness for far and near field illumination
Particularly when driving on rural and dirt roads, a greater range of visibility can play a key role in ensuring safety. The LEDriving® Lightbar FX1250-CB SM GEN 2 provides additional, near and far field illumination on dark roads with up to 11.000 Lumen. Even in poor visibility conditions or at dusk, the 45 high-performance LEDs reach a light distance of up to 630 meters and daytime lighting conditions with a color temperature of 6000 Kelvin. The driving light impresses with its special reflector design and ensures not only a modern and appealing look but also reduces glare for more visibility on the road. It can be used as both a supplementary LED high beam headlight and a powerful working light. The light is fully ECE-compliant in both versions and therefore suitable for use on roads. Additionally, OSRAM has developed a specially designed mounting kit, compatible with all driving lights of the Functional series FX Gen 2 for individual mounting. Versatile applicable, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminum housing and the stable polycarbonate lens, it is particularly light and at the same time robust and resistant. Complete polarity protection both prevents damage from excess voltage and contributes to a longer lifespan. The LEDriving® Lightbar FX1250-CB SM GEN 2 has been tested and validated with the IP-Protection Classes IP6K8 & IP6K9K in our DIN certified environmental simulation laboratory for extreme external influences regarding water, dust, impacts, heat, cold and permanent vibration. Its variability gives the FX series a flexible range of uses. They can be attached to cars, trucks, agricultural machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads. OSRAM provides a 5-year guarantee.

Areas of application: Driving Light - Additional high beam application - central single mount

Safety advice, all: For detailed application information, please refer to the product data sheet and the user instruction
- Combo beam pattern
- 6000K
- For 12V & 24V vehicles
- Power Level: 11.000lm
- Light beam up to 630m
- Aluminum die-cast housing
- Shatterproof polycarbonate lens
- Single mount certified (2x ECE R149), ECE R10, ECE (Ref. 2 x 20)
- Overheat & polarity protection
- Highest protection classes according to IP6K8 & IP6K9K
- Efficient reflector lens design with 45 high-performance OSRAM LEDs
- For particularly focused high beam distribution
- Brilliant white light color
- For multivariate use
- Maximum of optical efficiency, effectiveness and homogeneous light distribution
- Robust and resistant - ensuring long life
- ECE-compliant and approved for use on roads
- Developed to meet the highest OE standards and requirements of the automotive industry
- Special reflector design for an appealing and modern look and reduced glare
- Increased safety through improved illumination off-road and on-road

ECE category:
Color temperature: 6000 K, Nominal wattage: 176 W
